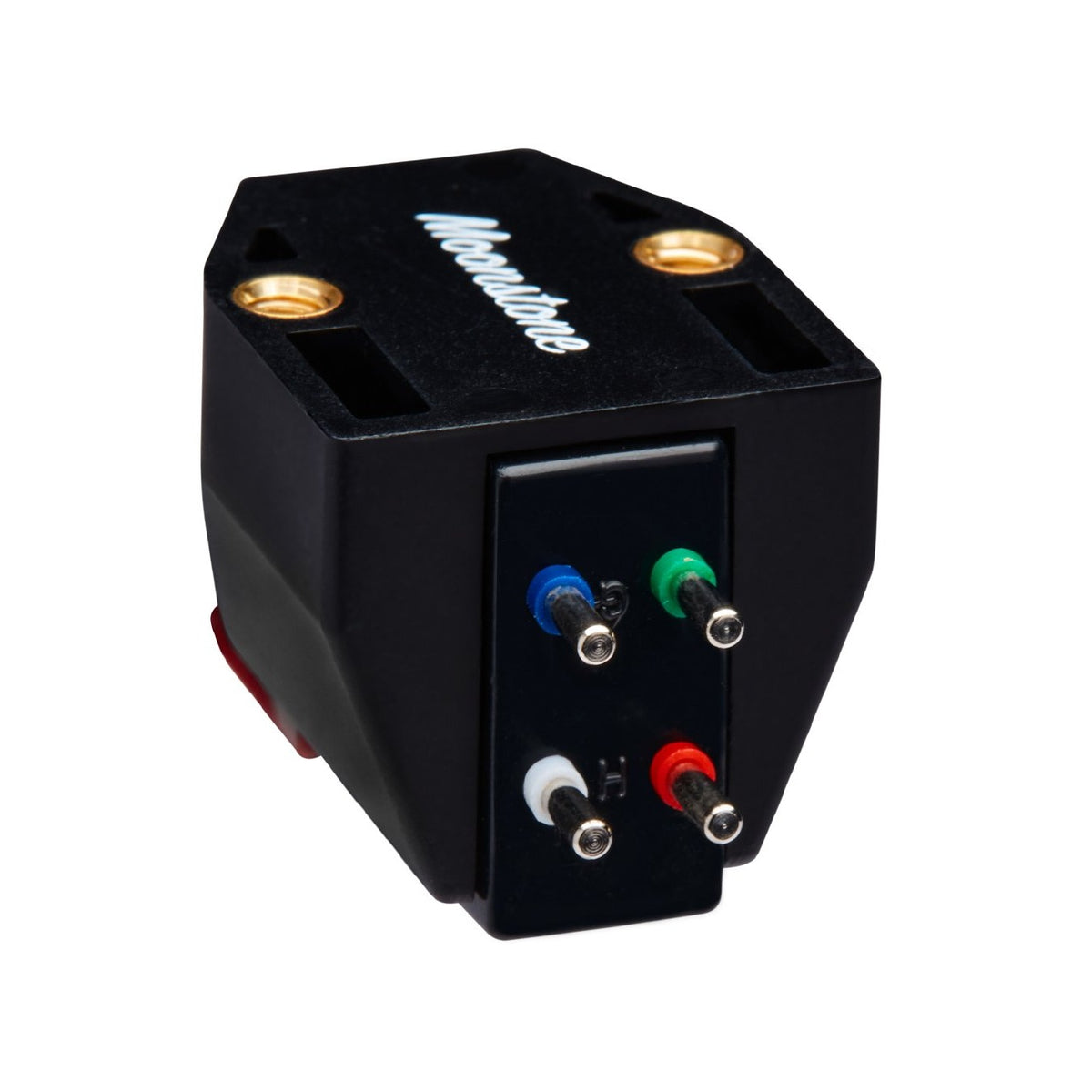

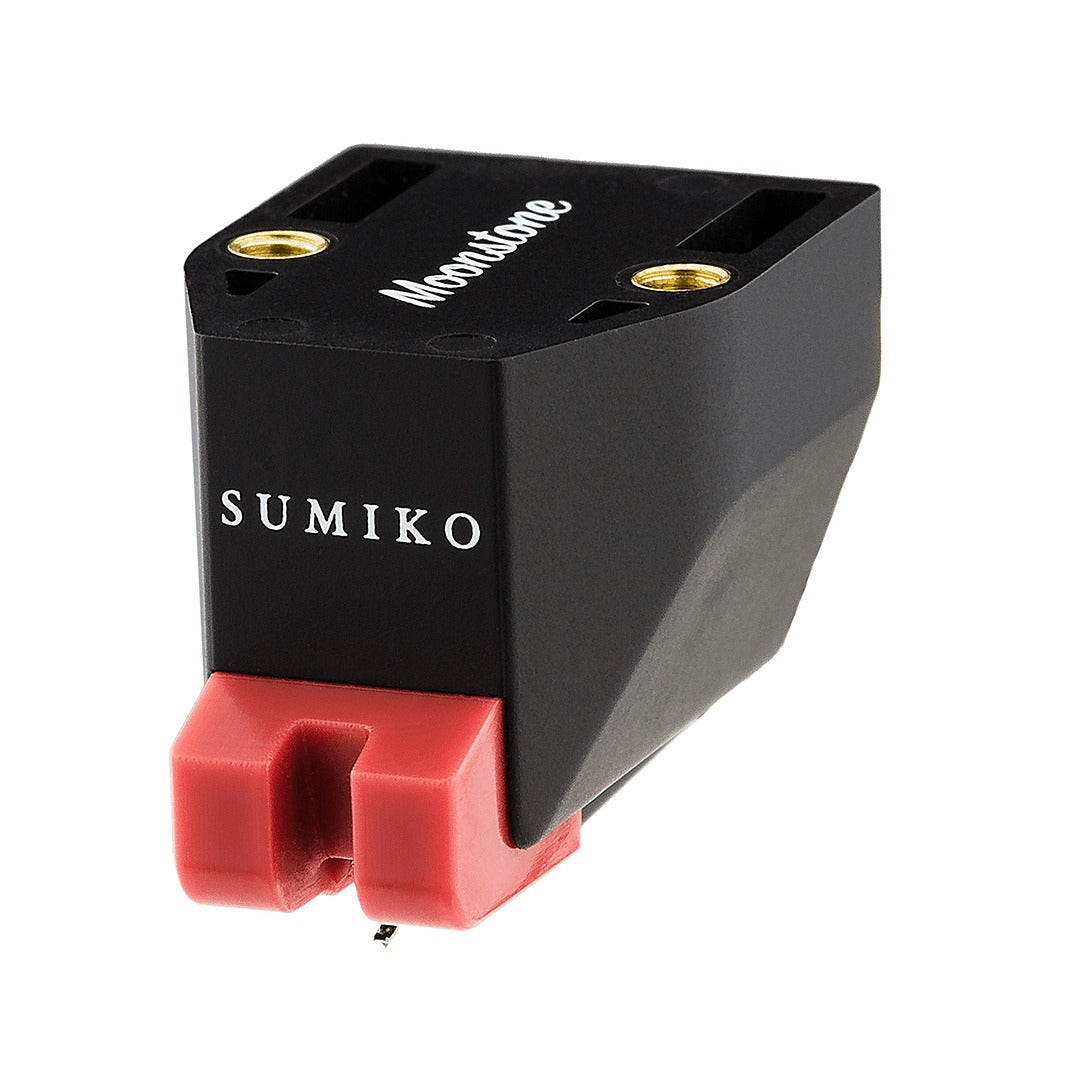

Sumiko Moonstone MM Cartridge

Sumiko Moonstone MM Cartridge

By combining a reduced moving-mass and output with a listen-tested elliptical diamond profile, Moonstone transcribes sonic imagery with weight, richness, depth & sparkle.

Regular price £339.00 GBP
Regular price Sale price £339.00 GBP
Sale Sold Out

Description

Moonstone

By combining a reduced moving-mass and output with a listen-tested elliptical diamond profile, Moonstone transcribes sonic imagery with weight, richness, depth & sparkle. Texture is keenly realistic. The sonic image is suspended and well-controlled over a nearly-absent noise floor, providing fantastic clarity.

  • Stunningly clear sound, with almost no perceptible noise
  • Overhead mounting cartridge for installing into a headshell
  • Moving magnet cartridge with removable stylus
  • Low-resonance body and generator system
  • Tipped Elliptical diamond stylus profile

Moonstone

The Moonstone features a finely polished elliptical stylus for accurate information retrieval from the record groove. Mounted on to a bespoke cantilever, and utilising a smaller magnet than its more affordable siblings, the Moonstone still uses the same integrated body and generator system as its kin, which is designed to significantly reduce internal resonances. The end result is a still affordable high-performance moving magnet cartridge that gives the punch and convincing realism of a good moving magnet design, but with a well-balanced, dimensionally dense and breathtakingly dynamic sonic spectrum that's more relatable to a moving coil-type.

Latest Generation Oysters

Designed for discerning, value-minded audiophiles, Sumiko's latest generation premium moving magnet Oysters build upon, enhance and refine the sonic character that listeners worldwide have enjoyed for decades. The cartridge body design addresses the problem of resonance by dispersing and dissipating it away from the generator system resulting in a sound quality, reminiscent of moving coil designs.

Made in Japan

From Oyster to Reference, each Sumiko phono cartridge is crafted by hand in Yokohama, Japan — near the waters where their namesake Oysters dwell. They’ve selected by ear the finest materials that combine to deliver performance that has enlightened generations of listeners. Each design is thoroughly auditioned until perfected. Production is then executed by world-class cartridge makers with a collective eye for precision and quality.

Specifications

  • Output Voltage
    3 mV
  • Channel Balance (@ 1000Hz)
    0.5 dB
  • Channel Separation (@ 1000Hz)
    30 dB
  • Channel Separation (@ 15000Hz)
    15 dB
  • Frequency Range (@ -3dB)
    6000 Hz
  • Frequency Response
    12 - 33000 dB
  • Tracking Ability (@ 315Hz at Recommended Tracking Force)
    70 μm
  • Compliance, Dynamic, Lateral
    12 μm
  • Stylus Type
    0.3 x 0.7mil Elliptical
  • Tracking Force Range
    1.8 - 2.2 g
  • Recommended Tracking Force
    2.0 g
  • Tracking Angle
    25 °
  • Internal Impedance
    1130 Ω
  • Internal Inductance
    450 mH
  • Magnet Type
    Alnico
  • Cantilever Material
    Aluminium Tube
  • Coil Wire Material
    Pure Copper
  • Recommended Load Impedance
    47000 Ω
  • Recommended Load Capacitance
    100 - 200 pF
  • Cartridge Weight
    6.5 g
