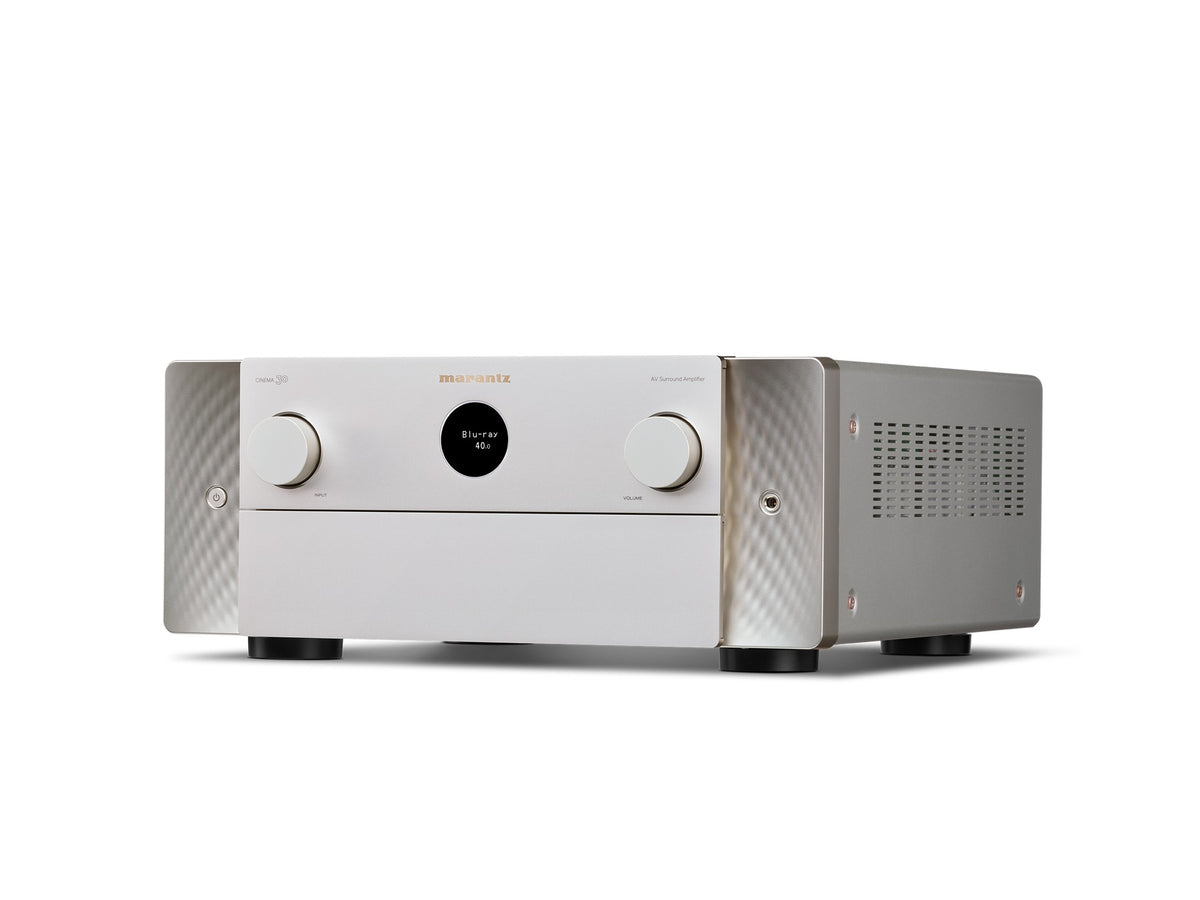

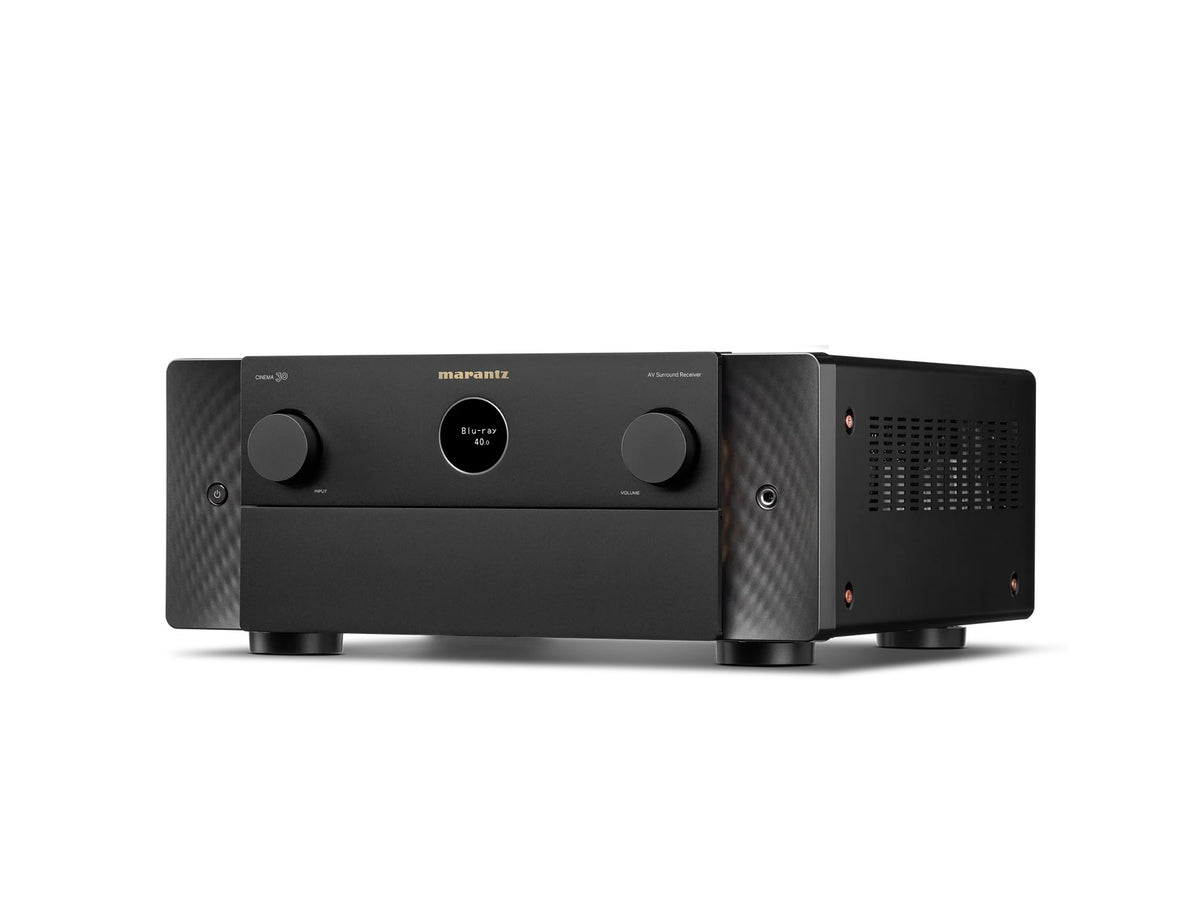

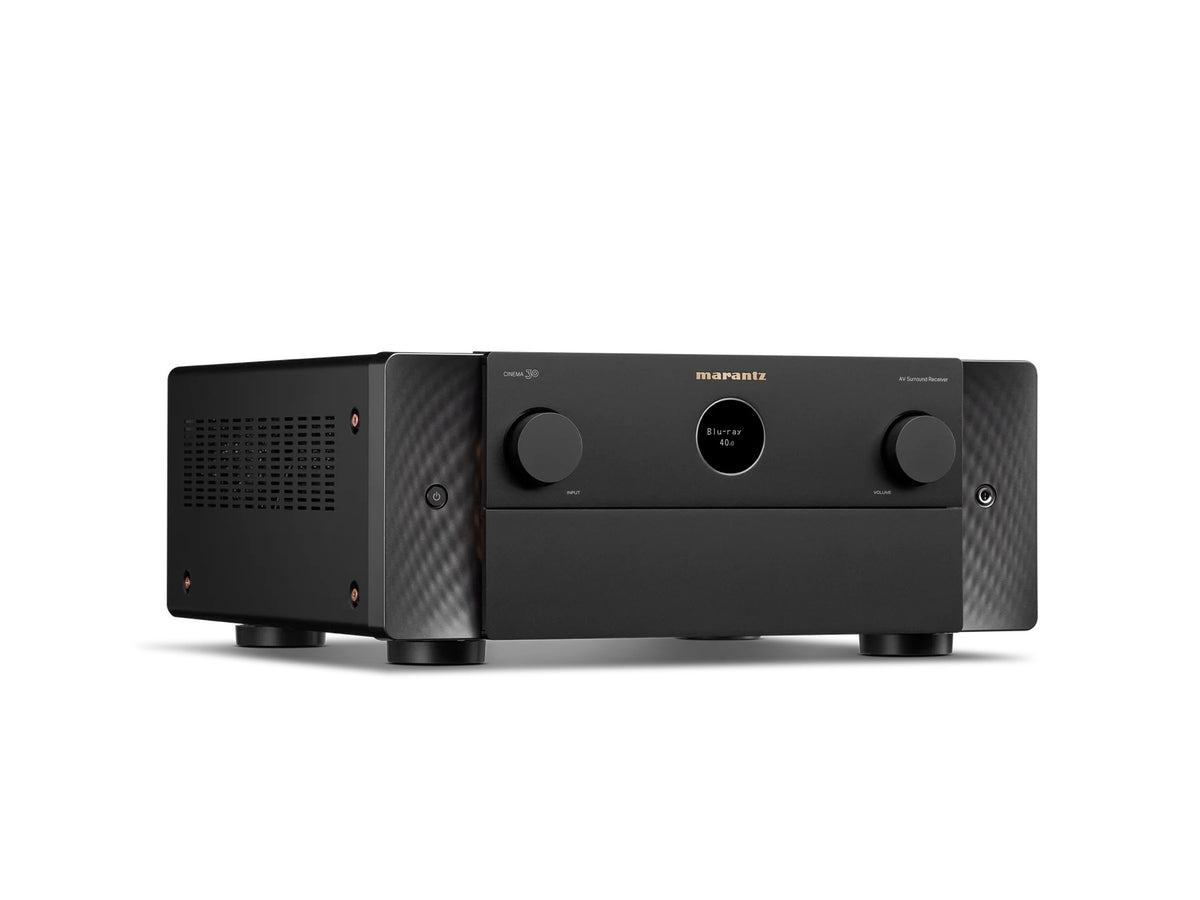

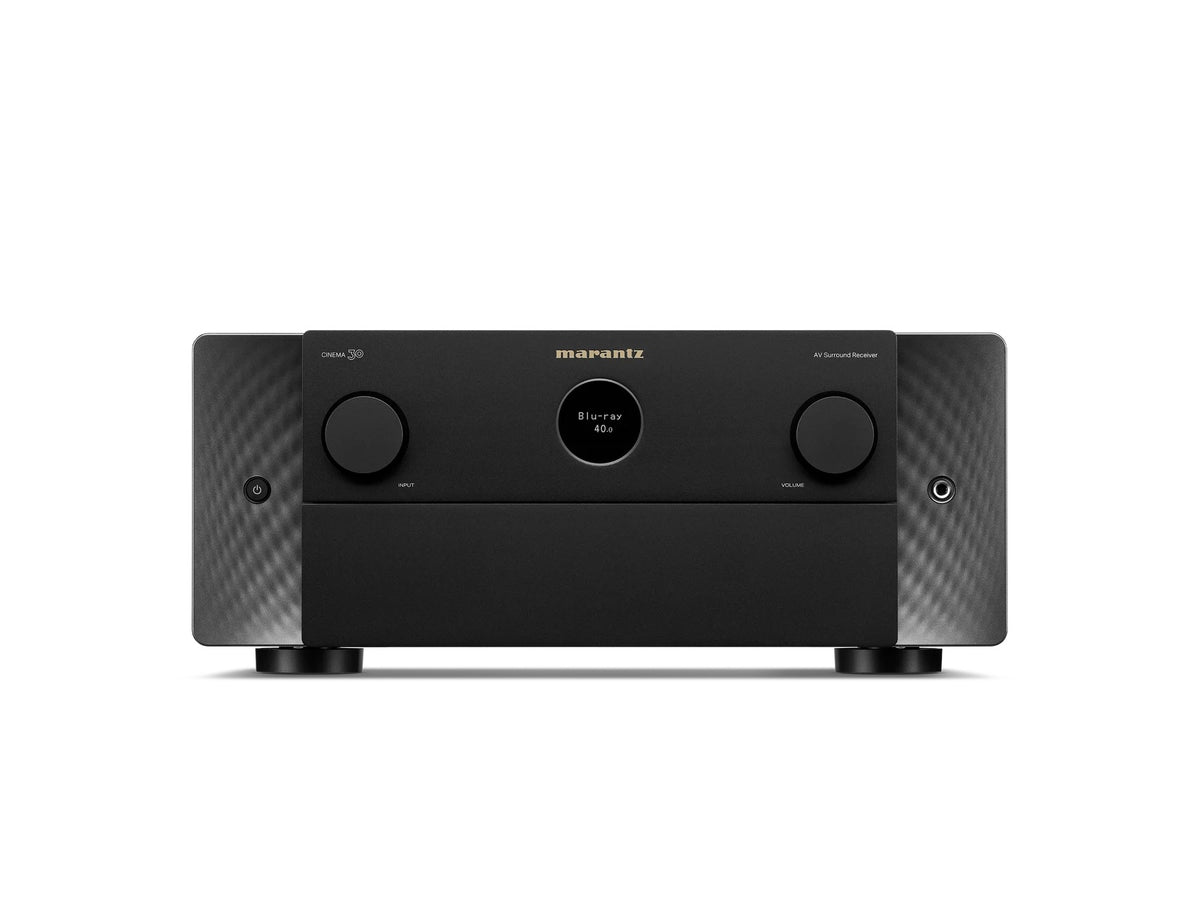

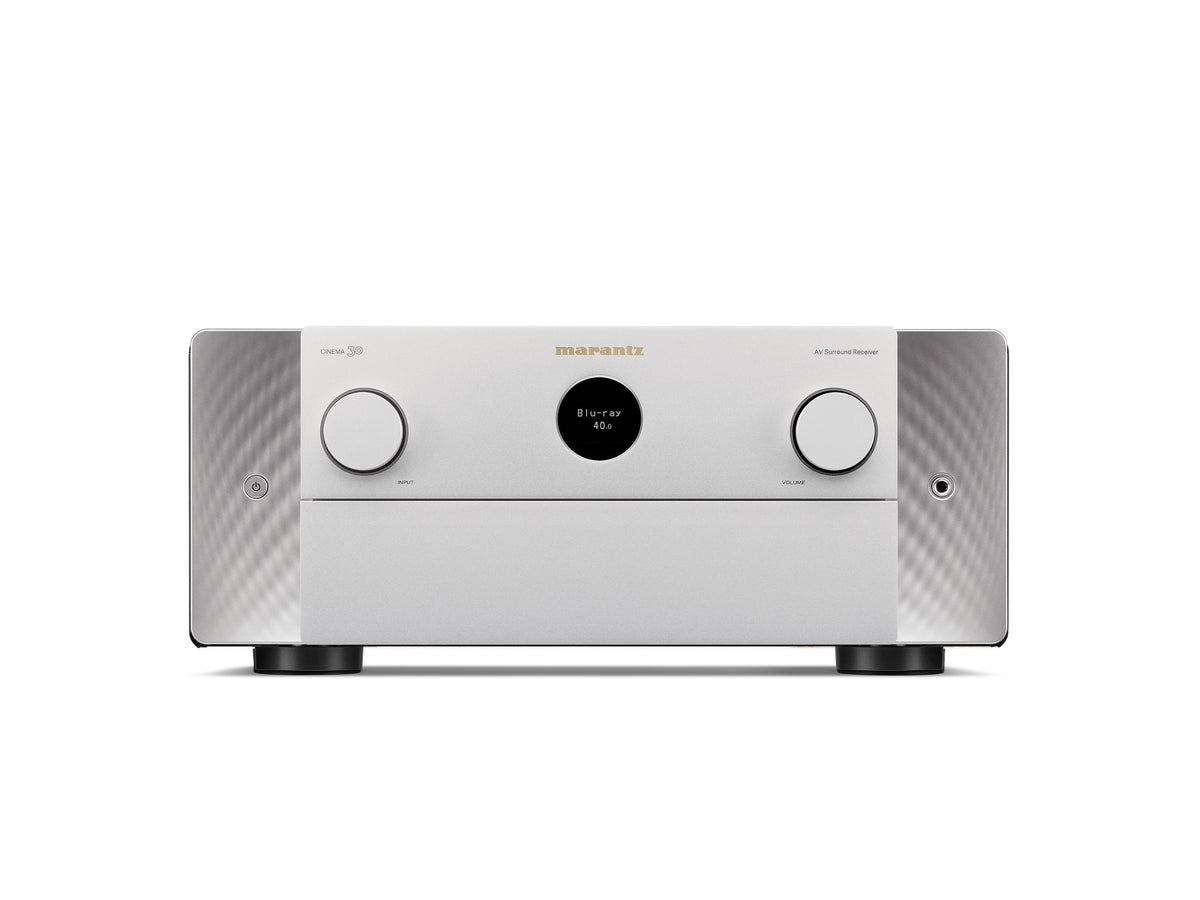

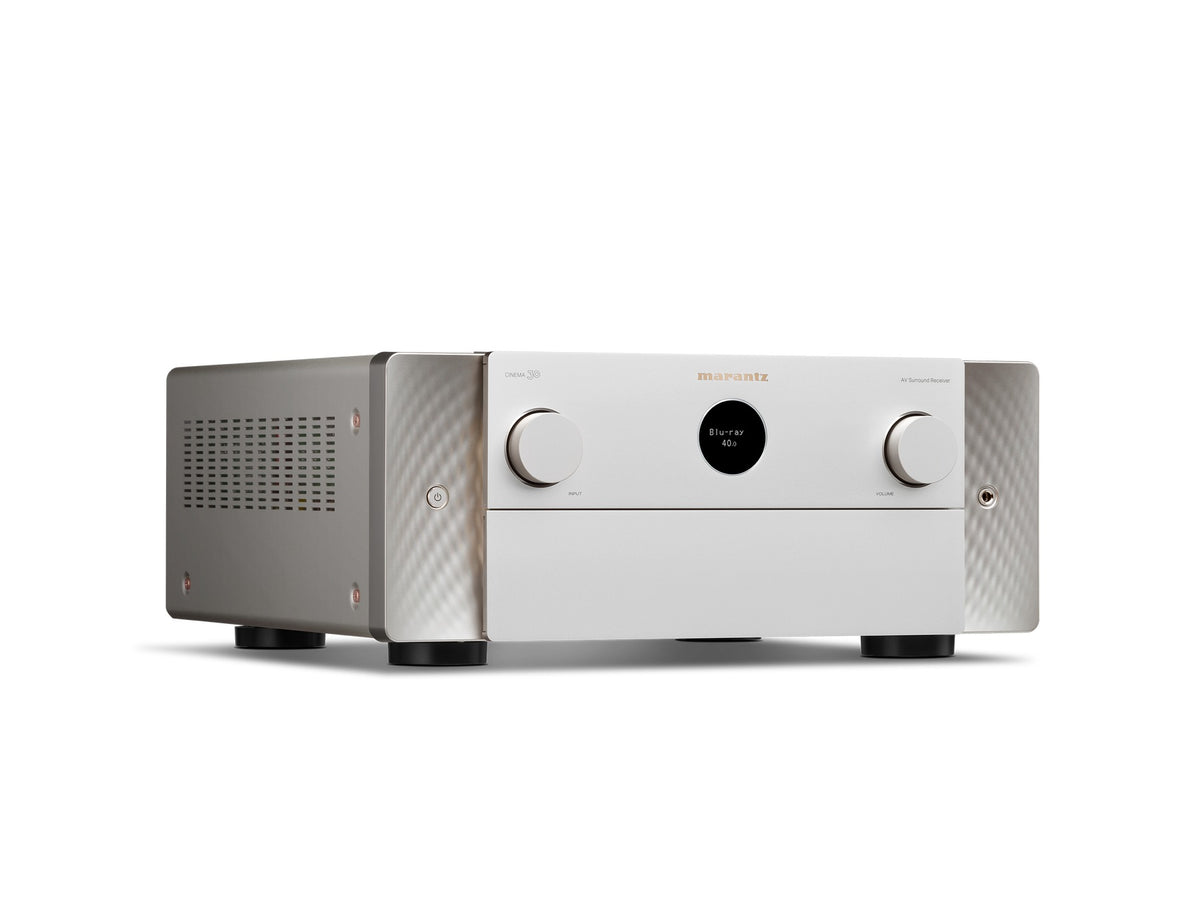

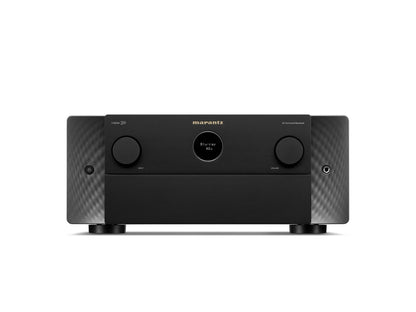

Marantz CINEMA 30 AV Amplifier

Reference 11.4 Channel AV Amplifier Powered by HEOS™ with Dolby Atmos, 140W, 8K and 7 HDMI Inputs

£3,450.00 GBP

Sale Sold Out

Finish: Black

Quantity

Description

CINEMA 30

Reference 11.4 Channel AV Amplifier Powered by HEOS™ with Dolby Atmos, 140W, 8K and 7 HDMI Inputs

CINEMA 30 is the most refined AV receiver Marantz has ever created, redefining premium home theater sound. Engineered with proprietary technology optimized from decades of rich heritage, its 11.4 channels deliver unrivaled performance and can power even large-scale home theaters with ease. Its discrete HDAM SA-2 circuitry, dual-DAC digital-to-analog conversion, and a monolithic symmetrical amplifier elevate it to Marantz’s highest performance level ever.

Crafted in Shirakawa, Japan
11.4 Channels
140 Watts per Channel
7 HDMI Inputs (all 8K) plus eARC
8K & Dolby Atmos
HEOS Built-in

Engineered To Perform

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.

HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.

Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.

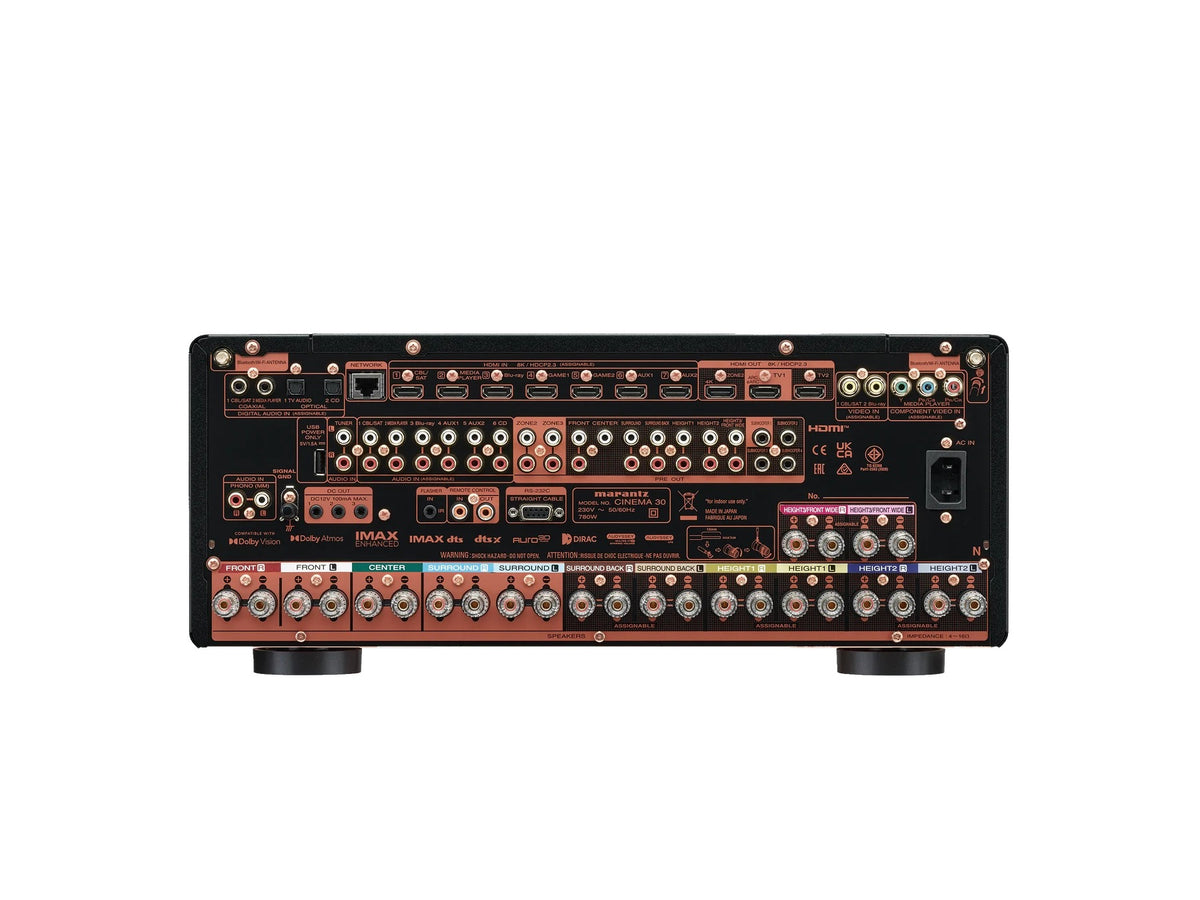

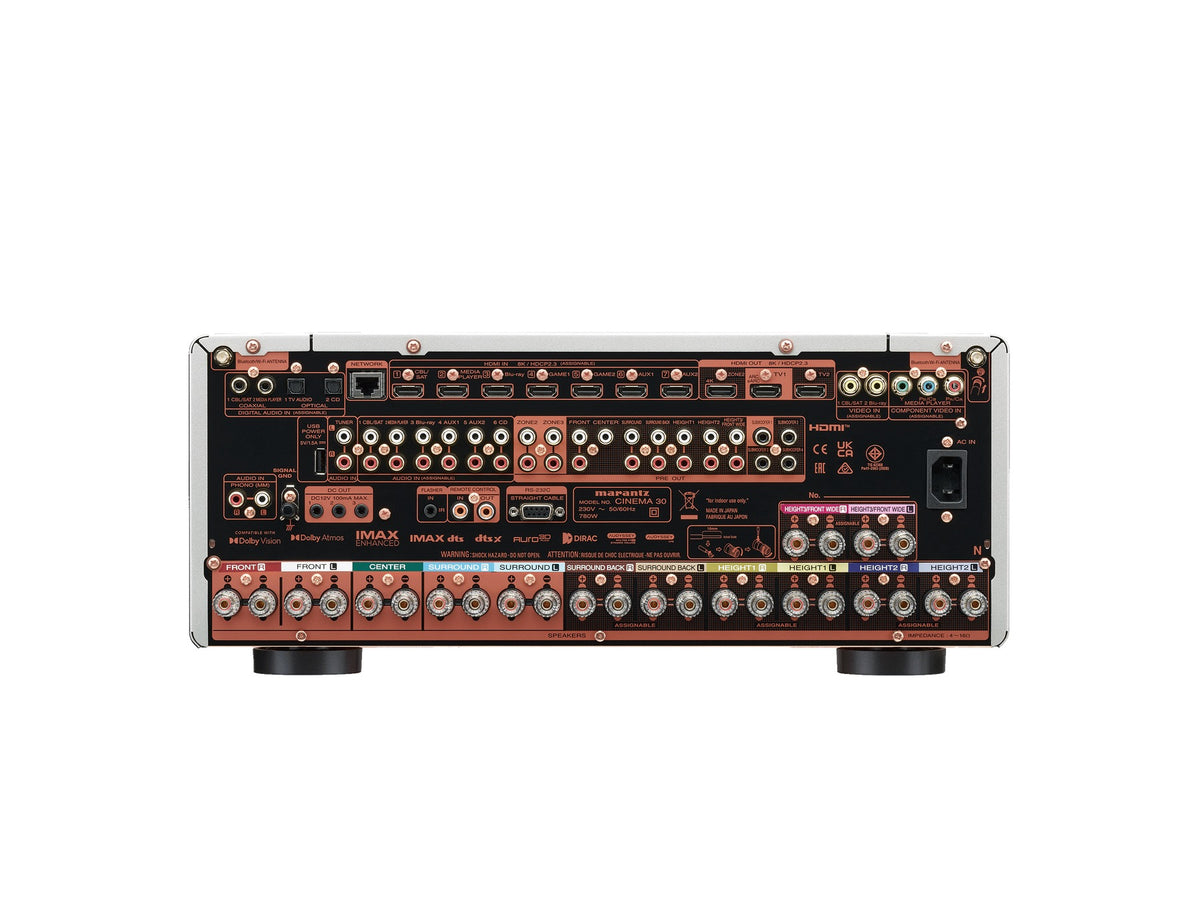

Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.

Specifications

Power Amplifier

Number of Powered Channels: 11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): -
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: yes
Bi-Amp Drive: assignable

Multichannel Surround Technologies

DTS: DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels: 13.4
IMAX Enhanced: Yes
Auro 3D: Yes
Audyssey DSX: Yes
Multichannel Stereo: Yes

Inputs Outputs

Composite In / Out: 2 / 0
Component In / Out: 1 / 0
HDMI In / Out: 7 / 3
Multi-Room Video Out via HDMI: 0 / 0
Analog In / Fixed Level Out: 3 in / 0 out
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / 0
Multichannel Preamp Out: 7.2
Subwoofer Out: 4 (independent)
7.1 multichannel input: No
Number of Speaker Terminals: 13
Speaker A / B: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: USB-A
USB Audio: Yes / No / No
FM Tuner with RDS: Yes
DAB+ Tuner: No
Multi-Room Video Out: Video / HDMI: 7/3
Analog In/out: 6 / 0
Multichannel Pre Out: Yes (13.4)
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes

HDMI

Total HDMI Inputs / No. Support 8K: 6 / 3
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
Analog to HDMI Video Conversion: No
HDMI Upscaling: 1080P/4K to 8K
Max resolution @ framerate
Audio Return Channel: ARC, eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes / No
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI: No
Auto LipSync: Yes
HDMI Inputs: Back / Front: 7 / -
Video Conversion Analog -> HDMI: Yes
HDMI to HDMI Scaling: 1080P/4K to 8K
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC :Yes / Yes / Yes / Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
8K signal pass-through / scaling / GUI overlay: o / o / o
4K Signal Pass-Through / Scaling / GUI Overlay: o / o / o
DSD Audio Capability: Yes

Performance Technologies

Copper Plated Chassis: Yes
Toroidal Power Supply Transformer: Yes
Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
Pure Direct Mode: Yes
Gold Plated RCA Terminals: Yes
Clock Jitter Reducer: Yes

Acoustic Room Correction

Audyssey: MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: Yes
Dirac Live Support: Yes
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes
Dirac Live Upgradability: Yes

Music File Support

Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio: 2.8 MHz / 5.6 MHz
Gapless Playback: FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2: Yes
Network Audio Sharing: Yes

Streaming Services

HEOS Multi-room and Streaming: Yes
AirPlay Audio Streaming: AirPlay2
Internet Radio: TuneIn
Spotify*: Spotify Connect
Pandora: No
SiriusXM: Yes
Other Streaming Services *: Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested: Yes

Network Connectivity

Ethernet Ports: Yes
Wi-Fi (include version / band): Yes
Bluetooth (Include version): Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes

Smart Home Integration and Control

Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android): Marantz AVR App
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes /Yes
Multi-Room zones: 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout: Yes / Yes
Zone HDMI Output from HDMI Source: Yes
Control Connectivity: IP Control / RS232 Control / Web Control / App Control
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 3
HDMI Diagnostics: Yes

Others

Front Display: 2 line FLD + port hole OLED
Primary Display Size (diagonal in/mm)
Secondary Display Size (diagonal in/mm)
GUI Languages: 3
Setup Assistant: Yes
Smart Select on Remote: Yes
Firmware Update by Network / USB: Yes / Yes
ECO Mode: Yes
Auto Power off: Yes
Sleep Timer: Yes
GUI Overlay on HDMI
CEC: Yes
Auto Speaker Setup by Microphone: Audyssey MultEQ XT32Dirac Live (upgrade)
Graphic User Interface - GUI: Modern HD GUIModern HD GUI
Smart Select: Yes

General

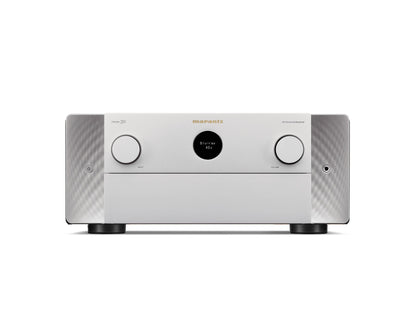

Available Colors: Black/Silver-Gold
Metal Front Panel: Yes
System Remote Control: RC-051SR
Power Consumption in W: 780
Power Consumption No-Sound (ECO on/off) in W: 65 W / 110 W
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm: 442 x 457 x 189
Antenna:Vertical :(W x D x H) in mm: 442 x 457 x 257
W/o Antenna:(W x D x H) in mm: 442 x 447 x 189
Weight in kg: 19.4
What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
Weight in lbs: 42.8
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm: 17.4 x 18.0 x 7.5
Antenna:Vertical :(W x D x H) in mm: 17.4 x 18.0 x 10.2
W/o Antenna:(W x D x H) in mm : 17.4 x 17.6 x 7.5
Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
