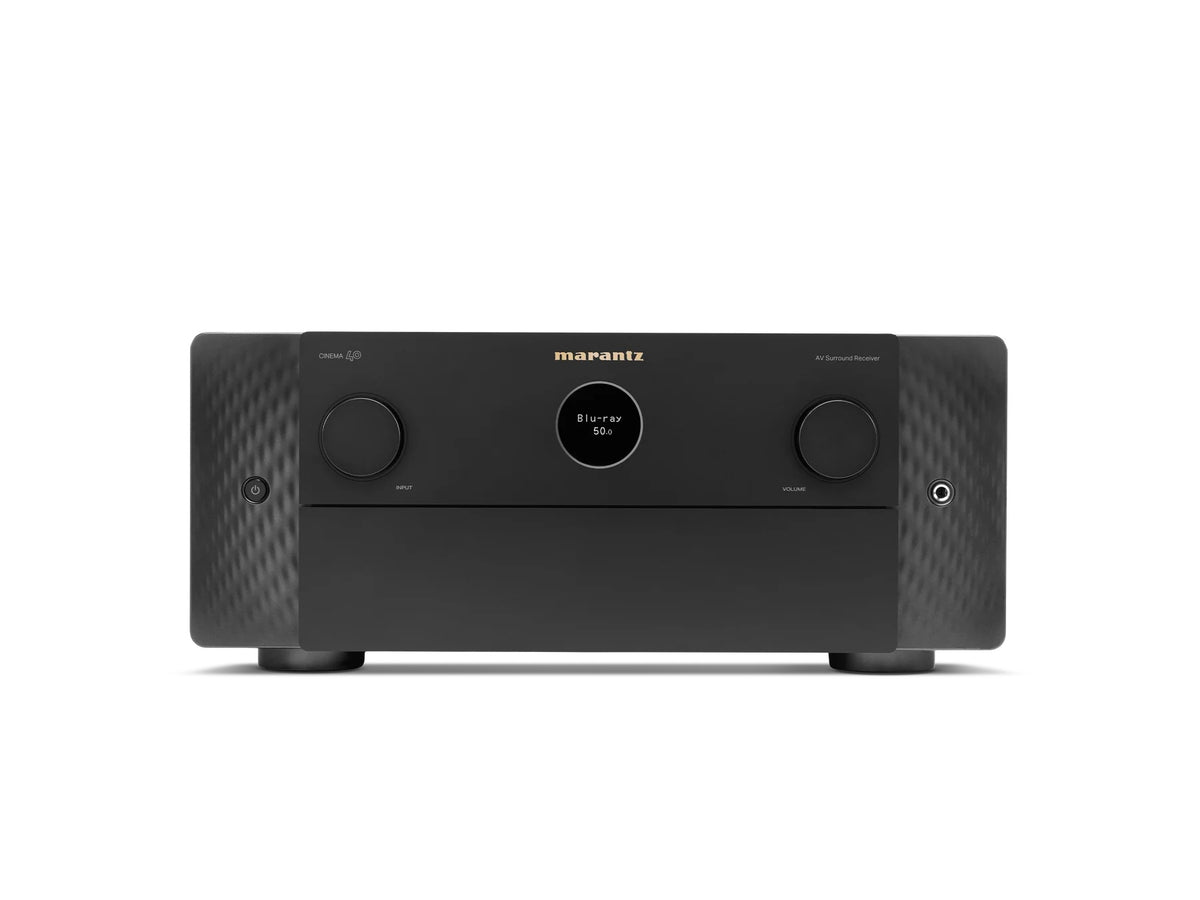

Marantz CINEMA 40 AV Amplifier

Description

CINEMA 40

Reference 9.4 Channel AV Amplifier Powered by HEOS™ with Dolby Atmos, 125W, 8K and 7 HDMI Inputs

A reference-level AV receiver, CINEMA 40 is a statement piece engineered with the latest immersive audio formats, poised to deliver rich, spacious, and enveloping Marantz sound. With 9.4 channels at 125 watts per channel and seven 8K HDMI inputs, it offers powerful multichannel amplification and advanced connectivity to support immersive speaker layouts and next-generation sources in premium home theaters.

Crafted in Shirakawa, Japan
9.4 Channels
125 Watts per Channel
7 8K HDMI Inputs plus eARC
8K & Dolby Atmos
HEOS Built-in

Engineered To Perform

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series receivers and amplifiers are the foundation of the world's most demanding home theatres.

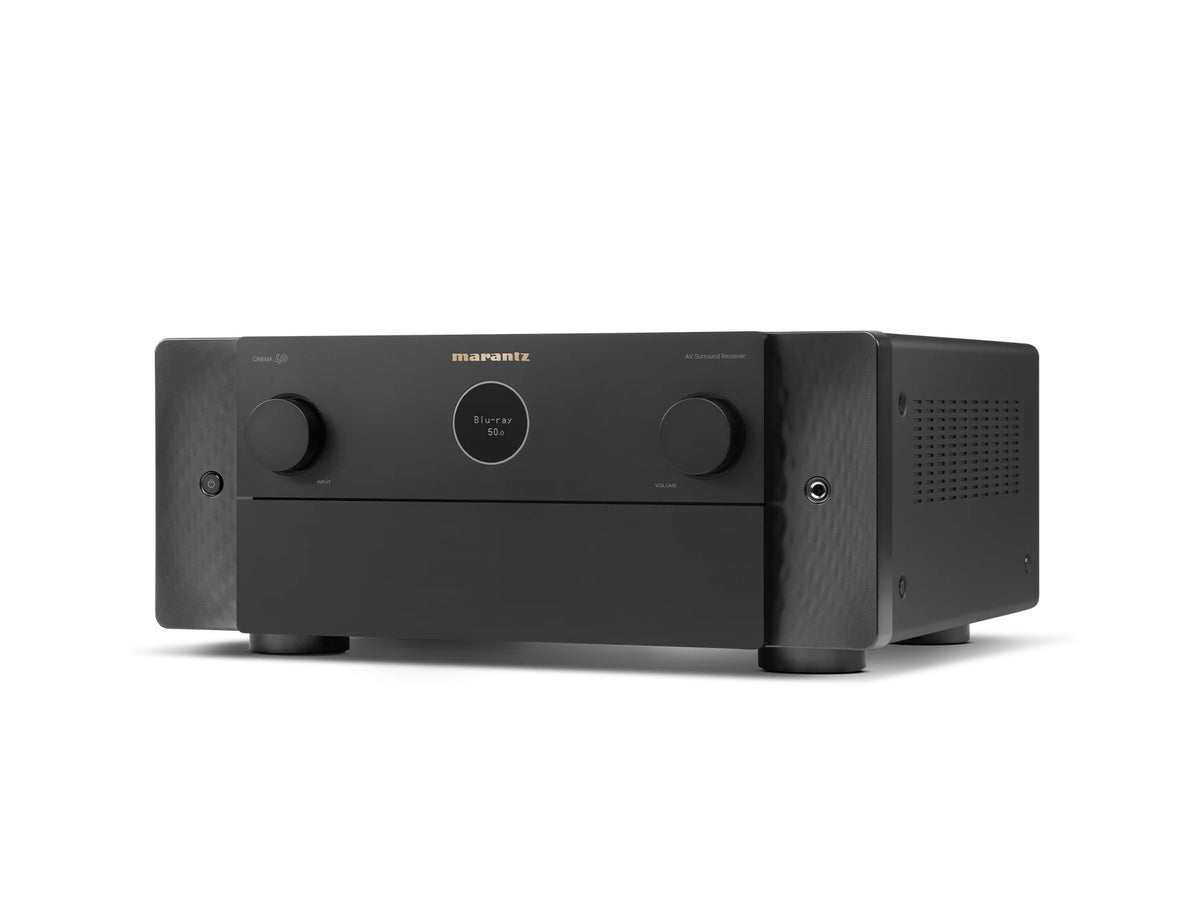

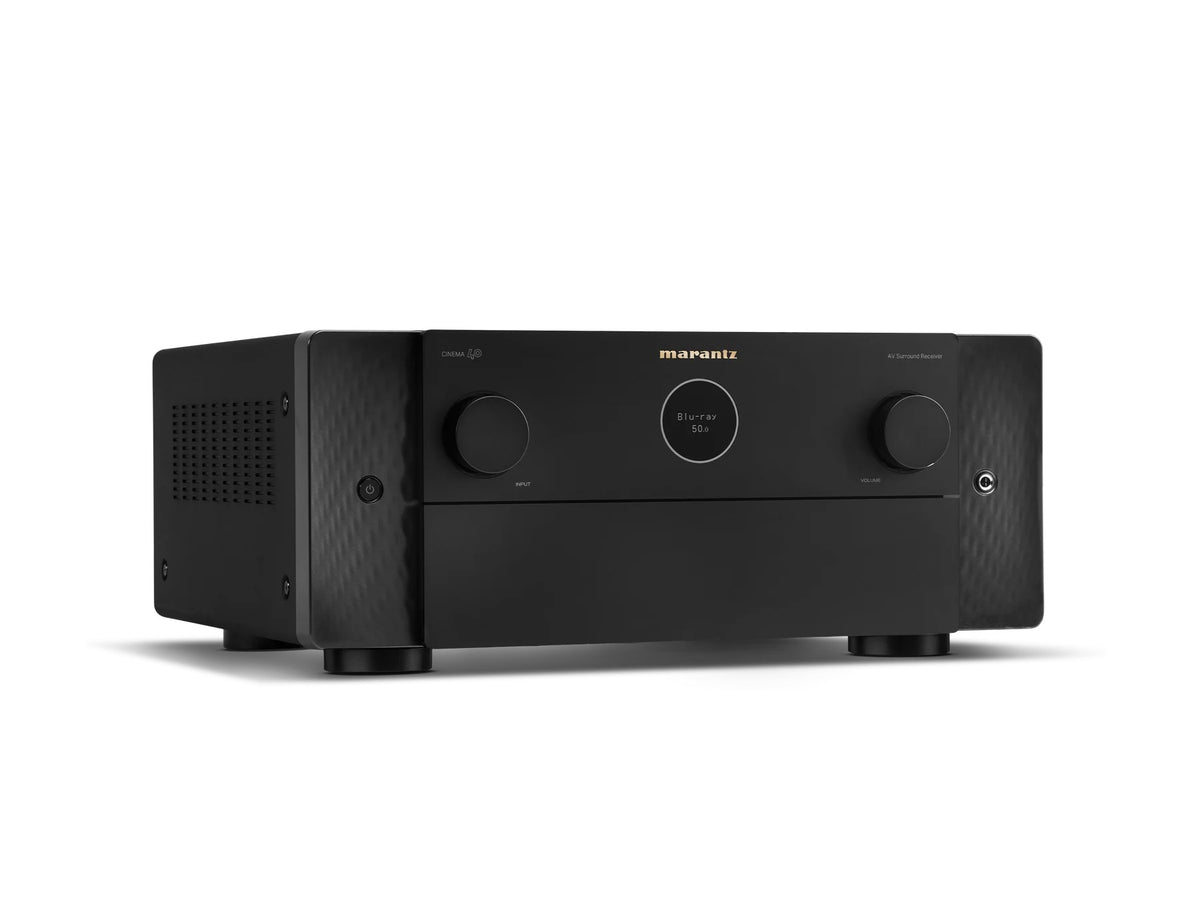

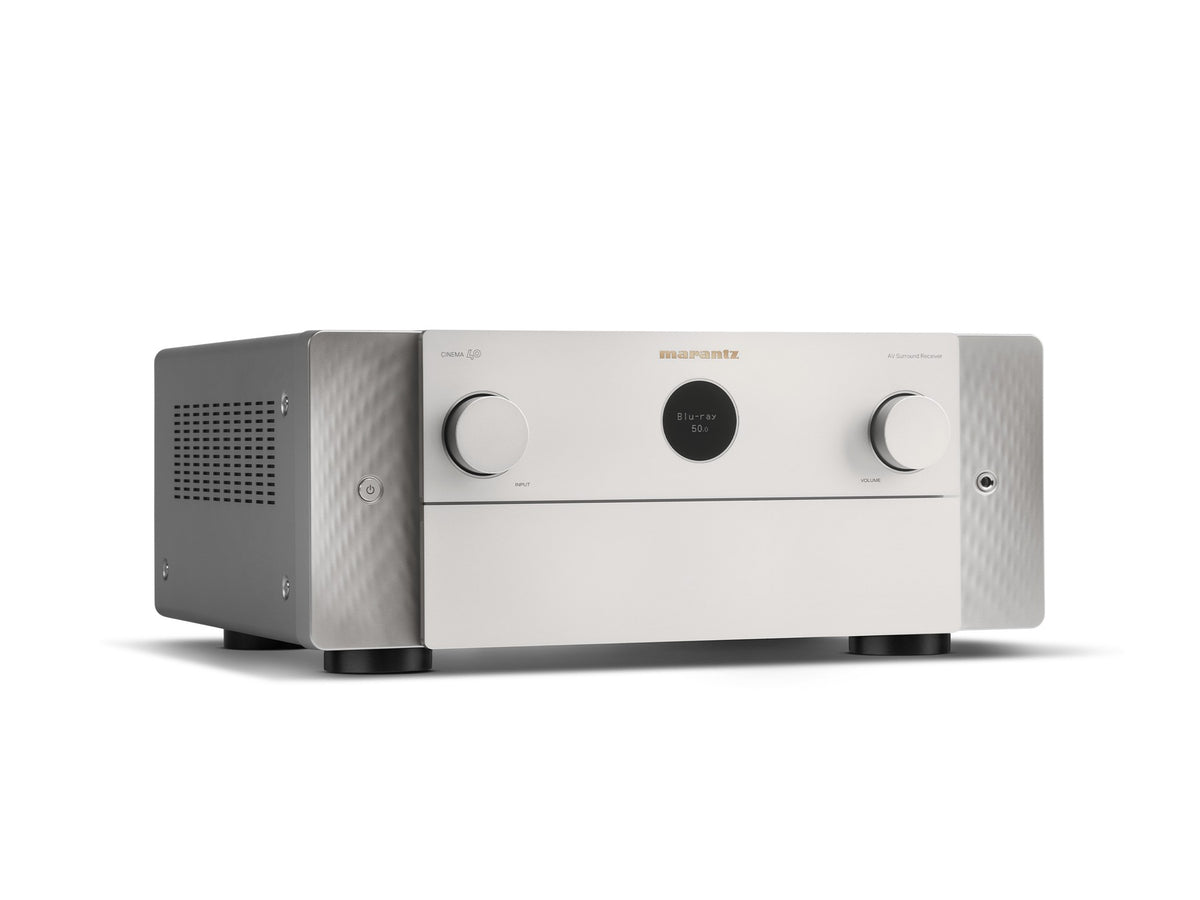

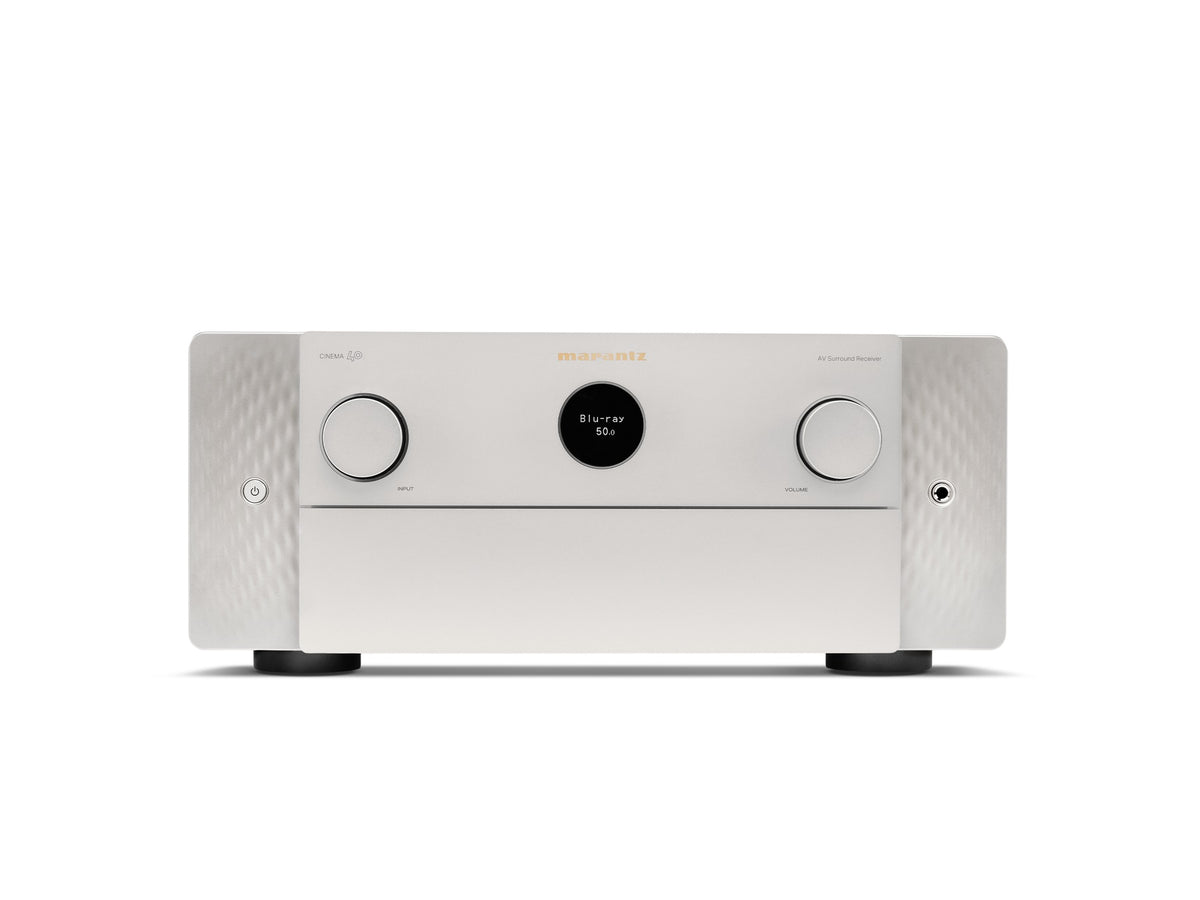

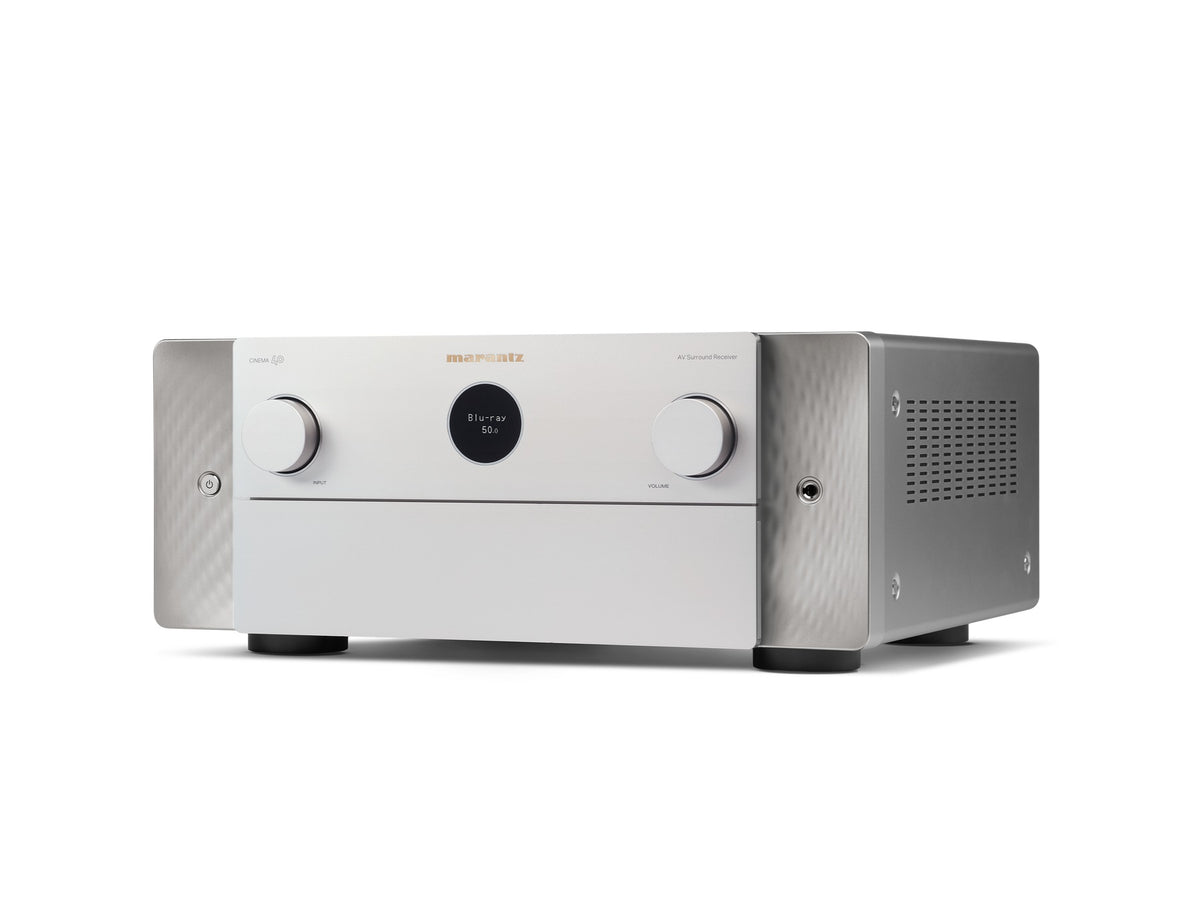

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Immersive spaciousness, warm and rich tone, extraordinary detail, and lifelike dynamics are legendary hallmarks of Marantz sound.

The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Specifications

Power Amplifier

Number of Powered Channels: 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: Yes
Bi-Amp Drive: assignable

Multichannel Surround Technologies

DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround
Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H
Max Number of Processing (Preamp) Channels: 11.4

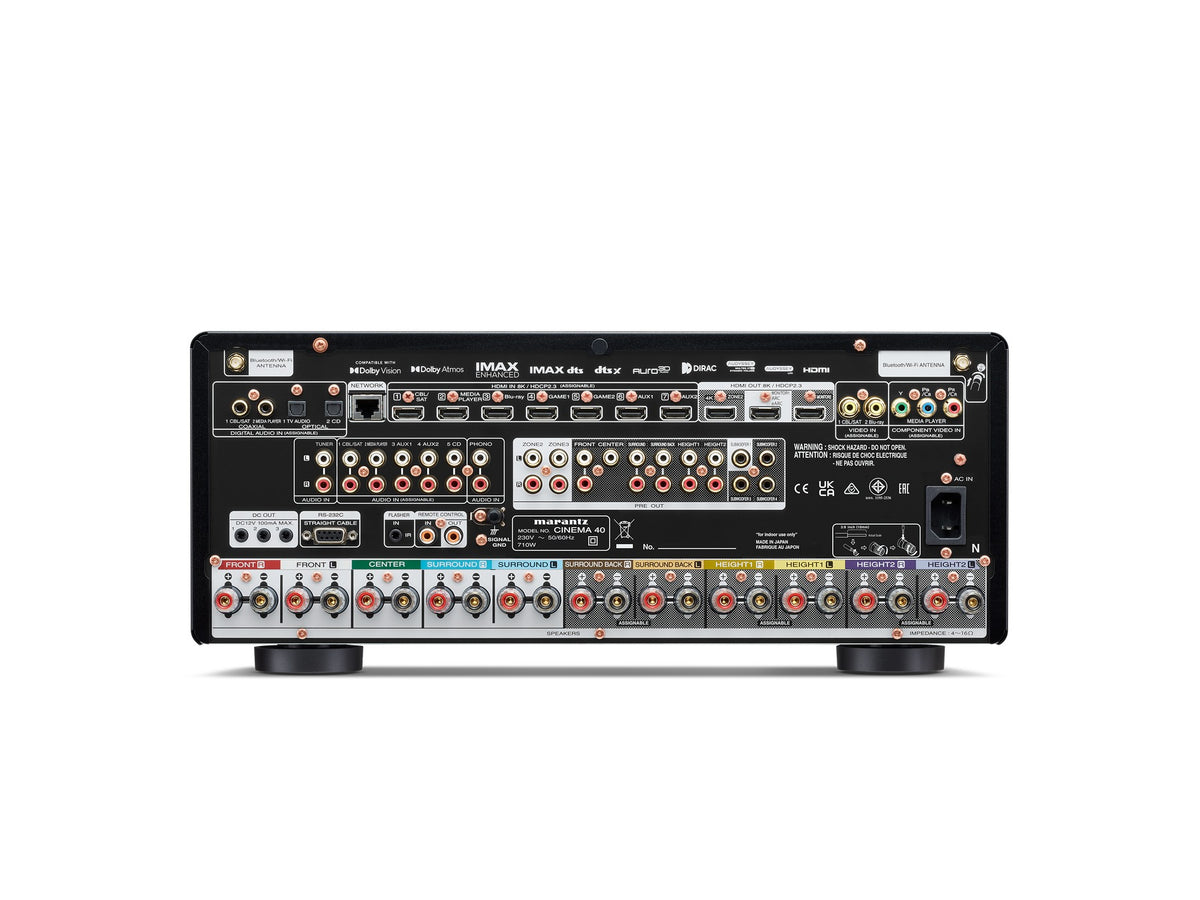

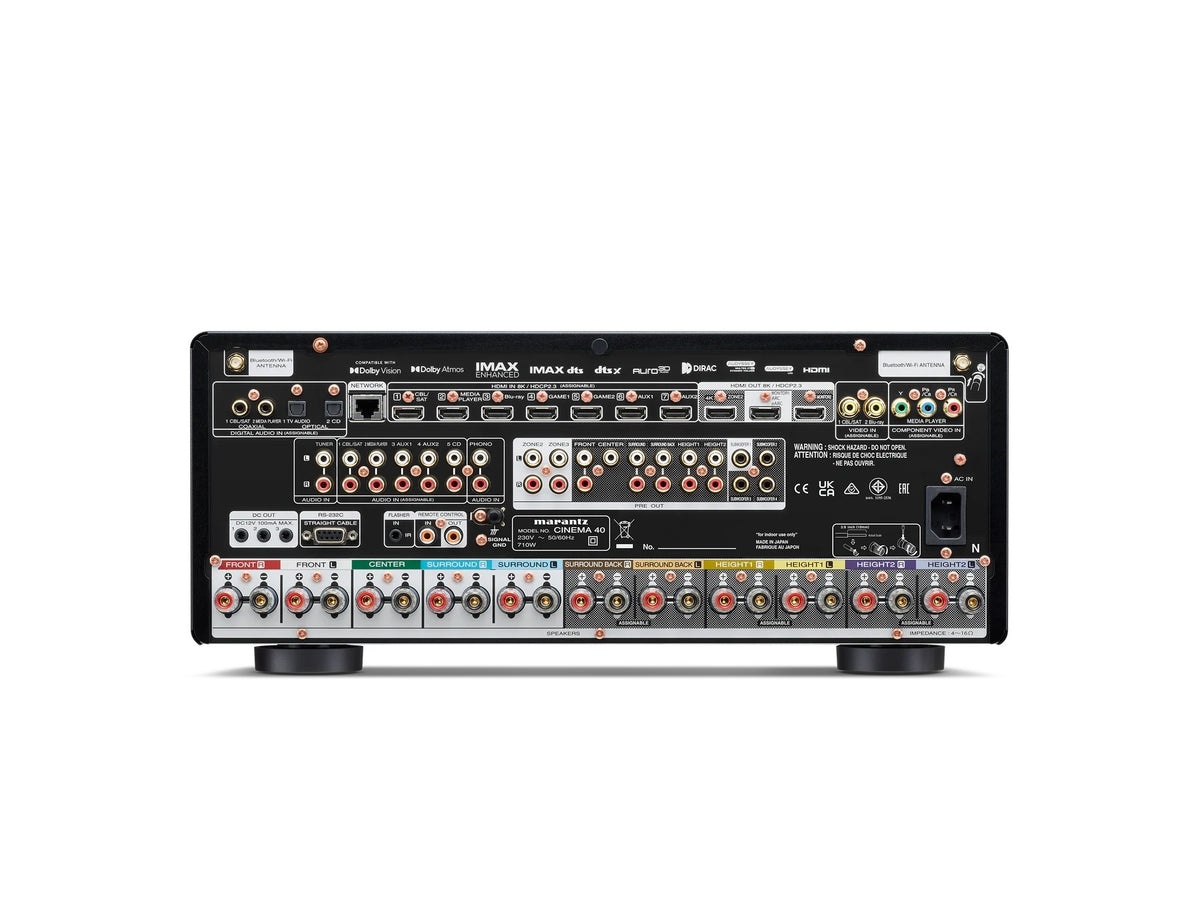

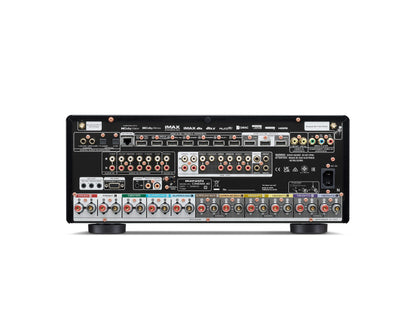

Inputs Outputs

Composite In / Out: 2 / 0
Component In / Out: 1 / 0
HDMI In / Out: 7 / 3
Multi-Room Video Out via HDMI: Yes
Analog In / Fixed Level Out: 5 in / 0 out
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 2 / 0
Multichannel Preamp Out: 11.4
Subwoofer Out: 4 (independent)
7.1 multichannel input: No
Number of Speaker Terminals: 11
Speaker A / B: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: USB-A
USB Audio / Made for iPod / Made for iPhone: Yes / No / No

HDMI

Total HDMI Inputs / No. Support 8K: 7 / 7
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
Analog to HDMI Video Conversion: Yes
HDMI Upscaling: 1080P/4K to 8K
Max resolution @ framerate: 8K @ 60Hz, 4K @ 120Hz
Audio Return Channel: ARC, eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI: Yes
Auto LipSync: Yes

Performance Technologies

Copper Plated Chassis: No
Toroidal Power Supply Transformer: No
Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
Pure Direct Mode: Yes
Gold Plated RCA Terminals: Yes
Clock Jitter Reducer: Yes

Acoustic Room Correction

Audyssey: MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: Yes / Yes
Dirac Live Upgradability: Yes
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: Yes

Music File Support

Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio: 2.8MHz / 5.6MHz
Gapless Playback: FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2: Yes
Network Audio Sharing: Yes

Streaming Services

HEOS Multi-room and Streaming: Yes
AirPlay Audio Streaming: Airplay 2
Internet Radio: TuneIn
Spotify*: Spotify Connect
Pandora: No
SiriusXM: Yes
Other Streaming Services *: Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested: Yes

Network Connectivity

Ethernet Ports: Yes
Wi-Fi (include version / band): Yes
Bluetooth (Include version): Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes

Smart Home Integration and Control

Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room zones: 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout: Yes / Yes
Zone HDMI Output from HDMI Source: Yes
Control Connectivity: IP Control / RS232 Control / Web Control / App Control
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 3
HDMI Diagnostics: Yes

Others

Front Display: 2 line FLD + port hole OLED
GUI Languages: 9
Setup Assistant: Yes
Smart Select on Remote: Yes
Firmware Update by Network / USB: Yes / Yes
ECO Mode: Yes
Auto Power off: Yes
Sleep Timer: Yes

General

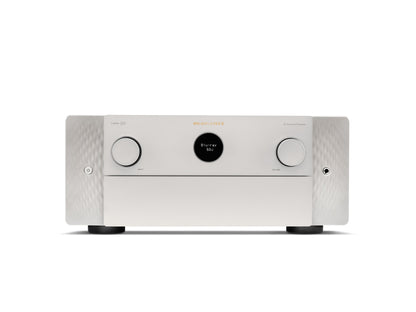

Available colours: Black/Silver-Gold
Metal Front Panel: Yes
System Remote Control: RC048SR
Power Consumption in W: 710
Power Consumption No-Sound (ECO on/off) in W: 65 / 110
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm: 440x414x185
Antenna:Vertical :(W x D x H) in mm: 440x414x254
W/o Antenna:(W x D x H) in mm: 440x401x185
Weight in kg: 15.1
What's in the box: Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
