SVS SoundPath Speaker Level Subwoofer Adapter

SVS SoundPath Speaker Level Subwoofer Adapter

Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.

Regular price £89.00 GBP
Regular price Sale price £89.00 GBP
Sale Sold Out

Description

SVS SoundPath Speaker Level Subwoofer Adapter

Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.

Inspired Engineering for Uncompromised Performance

  • Stereo Gold-plated 5-way speaker-level binding posts allow bare-wire, spade, or banana connectors.
  • Gold-plated stereo RCA line-level output jacks ensure a secure connection to the line-level inputs of the powered subwoofer. Works seamlessly with a pair of SVS SoundPath RCA Subwoofer Cables.
  • Features premium grade narrow-tolerance resistors and wide-trace PCBs for high-current and extreme power handling. Uncompromising design yields wide bandwidth and ultra-low distortion for pristine signal transfer, pinpoint accuracy and compatibility with all high-end audio systems.
  • -30 dBV attenuation will not draw any power from the loudspeaker amplifier ensuring a safe signal for the subwoofer line level inputs.
  • Minimalist design with insulated chassis for discrete placement.

Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.

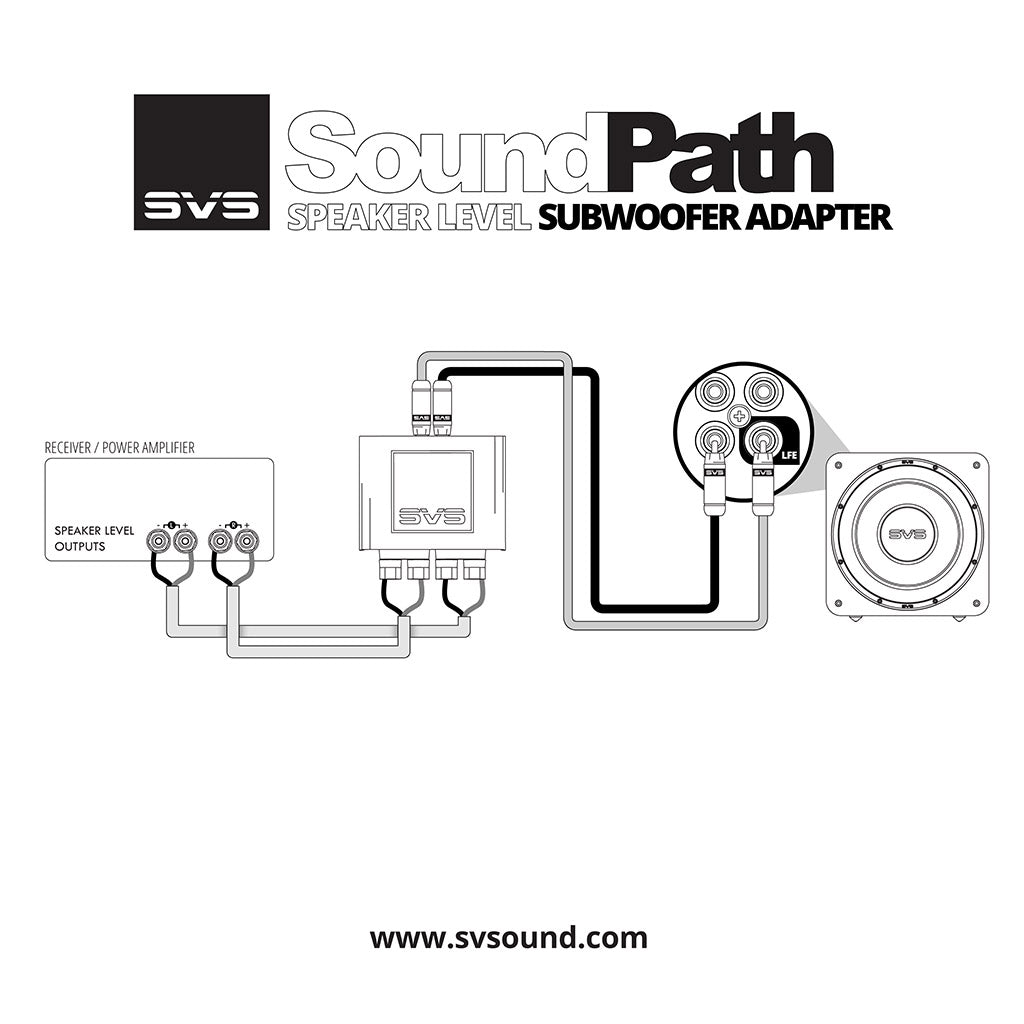

Easy Speaker Level to Line Level Connection

Speakleveldia

Specifications

  • Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts
  • Line-Level Outputs: Stereo Gold-Plated RCA Jacks
  • Speaker-Level Input Impedance: 4.85 kΩ
  • Line-Level Output Impedance: 150 Ω
  • Voltage Attenuation: -30 dBV
  • Power Handling: 500W RMS / 1,000W Peak
  • Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
  • THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
  • Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
  • Weight: 0.6 lb. (0.28 kg.)

5 Year Warranty

The warranty period starts from the date of purchase and covers you from manufacturing defects & unexpected faults through normal use. It does NOT cover you from accidental damage, damage caused by usage outside of product specifications or expected product wear and tear.
